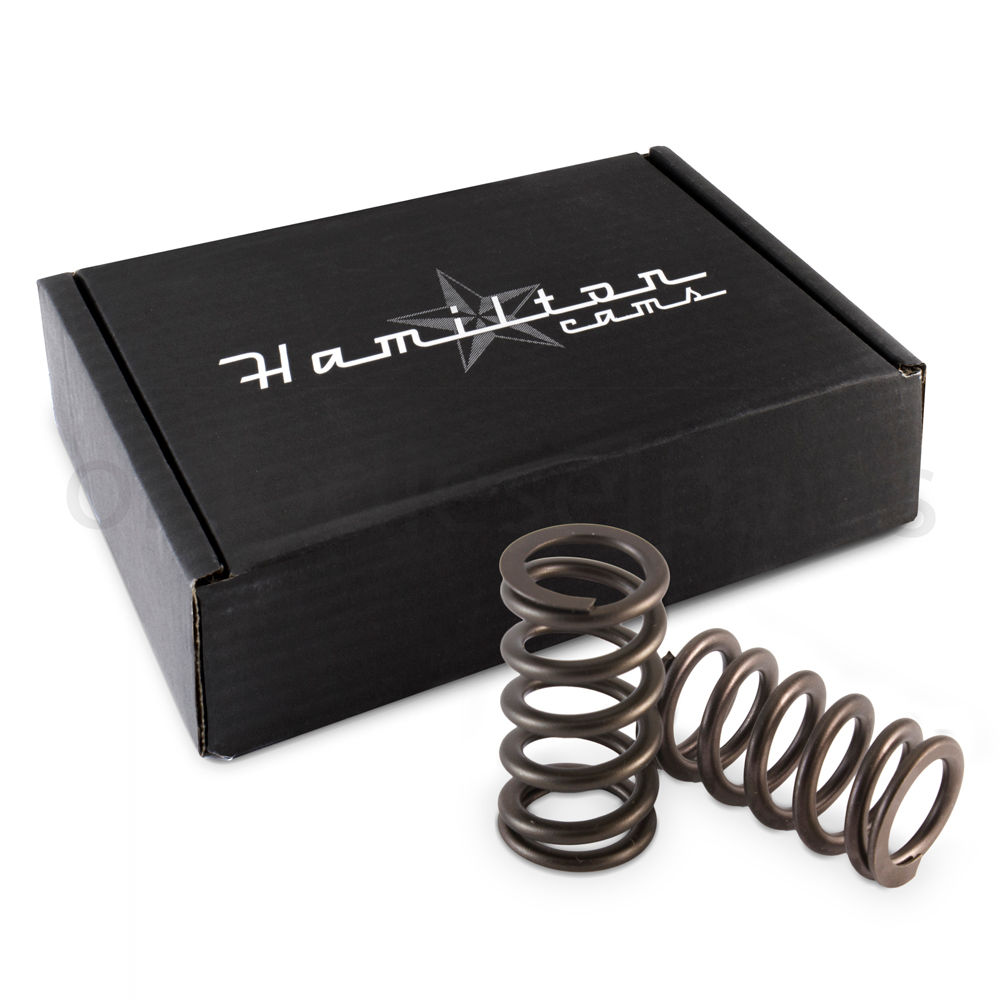

Hamilton Cams 24 Valve 103 lb Springs for Dodge Cummins 5.9L/6.7L 1998.5-2017



**If you need valve springs and pushrods we also have a package deal from Hamilton Cams for 103lb Valve Springs + Heavy-Duty Pushrods or Extreme Duty Pushrods + a FREE valve spring tool. Please contact customer service if interested and to ensure correct fitment on your truck: (216) 408 6455**



FEATURES:



  • Must have if you are over 35 PSI (boost or drive pressure) and 3,800 RPM
  • 103lb Spring Pressure and 180lb Nose Pressure
  • Hamilton Cams Part Number: 07-S-003
  • Fit 24V Cummins 5.9L/6.7L through years 1998.5-2017
  • Made in U.S.A



Stock springs have 78-82lbs of pressure seat pressure on average at 1.380″. If you are over 35 PSI (boost or drive pressure) and 3,800 RPM, stock springs do not fully control the valve train. This allows a few negative things to happen. First, valve float, which can cause serious damage to the valve train. Second, intake and exhaust valves can be blown open by boost and exhaust drive pressure which allows reversion. Reversion can hurt your power potential by allowing exhaust gasses to enter the cylinder on the intake stroke. Inert gasses in the exhaust, when re-introduced into the cylinder shield the fuel particles from oxygen in the cylinder. This does a few things that negatively affect power. It increases the time delay from start of injection to start of combustion, it decreases the maximum pressure and maximum temperature reached in the cylinder and it increases the total time needed to completely burn the available fuel. Correct valve spring pressure is a very important piece of power production. Triple Shot peened and stress relieved.

We recently slightly lowered the pressure on our springs from 110lb to 103lb. Nose pressure has been lowered from 220lb to 180lb. Watch out for other companies that have nose pressures over 250lb. Your cam will have a shorter life with 250lbx2 (500lb) versus 180lbx2 (360lb) over the nose of the cam. Don’t just ask what seat pressure is when you are shopping for springs, ask what the pressure is on the nose (1.031″ with OEM cams or .958″ with the 188-220)



If you are running over 4,500 rpm with a large cam, we suggest going with our 103lb springs with different heat treat and shot peen, for better longevity in extreme applications, as well as our light-weight 4130 or titanium retainers.



Warning: Warning: not all 24valve springs are created equal…. recently we have started seeing other companies market products that are called 110lb 24 valve springs, when in reality they have 117-119lb of seat pressure and almost 250lb nose pressure at .320 lobe lift. Also, they are designed as an entry level spring for a dodge neon, but are re-boxed and sold to the diesel crowd. This spring can cause major lobe wear to anything over a stock lift cam. ALL of our cams have more than stock lift.



For comparison, our 103lb springs have 102-104lb seat pressure and 180lb nose pressure with the 188-220. By running anything other than our 103lb 24v springs with our cam, you nullify the warranty we offer. If you run a cam with more than .320″ lobe lift and anything other than the 103lb spring you run the chance of experiencing coil bind before maximum valve lift is achieved.



Manufactured RIGHT HERE in the U.S.A.

Our kit will get the job done!



CONTENTS:

Twenty-four (24) Hamilton Cams 103 lb Springs



QUESTIONS:

Please call or text (216) 408-6455 any day or time. Someone is always available to answer questions.









Hamilton Cams 24Valve 103lb Springs 07-S-003 for Dodge Cummins 5.9L/6.7L 98.5-17

SKU: HCVS-1000S
$399.00Price
    • Must have 103lb springs if you are over 35 PSI (boost or drive pressure) and 3,800 RPM
    • 103lb Spring Pressure and 180lb Nose Pressure
    • Hamilton Cams Part Number: 07-S-003 (Springs)
    • Fit 24V Cummins 5.9L/6.7L through years 1998.5-2017
    • Made in U.S.A
  • The product sold above if used for modification of a vehicle in any way or as stated above for any vehicle is not associated with the vehicle manufacturer. The seller is not a certified mechanic and assumes no responsibility for damage, liability, or injury that may result to you, your vehicle, and/or others.
